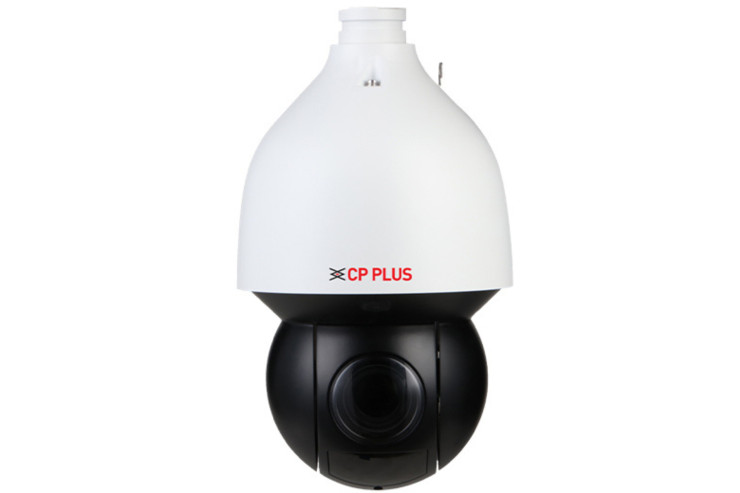

2MP WDR 25x IR Network PTZ Camera- 150 Mtr.
2MP WDR 25x IR Network PTZ Camera- 150 Mtr.
| Image Sensor | 1/2.8” PS CMOS (0.9071 centimeters) |
|---|---|
| Effective Pixels | 1920 (H) × 1080 (V), 2 Megapixels |
| S/N Ratio | ≥55dB |
| RAM & ROM | 1GB & 4GB |
| Minimum Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Max. Aperture | F1.6–F3.5 |
| Focal Length | 4.8 mm–120 mm |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.1m - 1.5m |
| Iris Control | Auto/Manual |
| DORI Distance | 1614m (Detect), 646m (Observe), 323m (Recognize), 161m (Identify) |
| Angle of View | H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2° |
| Shutter Speed | 1/1s~1/30,000s |
| AGC Control | Auto / Manual |
| Back Light Compensation | BLC / WDR(120dB) |
| Optical Zoom | 25x |
| Digital Zoom | 16x |
| Pan Travel | 0°~360° endless, Pan Speed: 0.1° ~300° /s |
| Tilt Travel | -15° ~ +90°,auto flip 180°, Tilt Speed: 0.1° ~200°/sec |
| Manual Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s |
| Presets | 300 |
| Preset Speed | Pan: 400° /s; Tilt: 300° /s |
| Power-off Memory | Support |
| Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
| Special Features | Electronic Defog, Up to 300 Presets, 5 Pattern, 8 Tour (up to 32 presets per tour), 5 Auto Scan |
| IR Range | IR Range upto 150 Mtr. |
| No of IR LEDs | 4 |
| Privacy Mask | Up to 24 areas, and up to 8 areas in the same view |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Day/Night: IR Cut Filter | Auto (ICR) / Color / B/W |
| Video Compression | H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1) |
| Encode Strategy | Instastream |
| Streaming Method | Unicast/Multicast |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Video Streaming | Main stream: 1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Two-way Audio | Support |
| Motion Detection | Support |
| ROI | Support |
| SMD | Support |
| Image Rotation | 180° |
| Image Stabilization | Electronic (EIS) |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Audio Streaming | 1/1 channel In/Out |
| Auto Tracking | Support |
| Alarm | 2/1 channel In/Out |
| Alarm Linkage | Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email |
| Face Detection | Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Perimeter Protection | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Protocols | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP; ONVIF (Profile S&G&T); CGI |
| Networking | RJ-45 (10/100Base-T) |
| Browser | IE 7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari |
| Memory | Micro SD card (Up to 512 GB) |
| Storage | FTP; NAS |
| User/Host | 20 (total bandwidth 64MB) |
| Smart Phone | iPhone, iPad, Android Phone |
| Operating Temperature | -40°C ~ +70°C (-40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Weatherproof Standard | IP67; IK10; TVS 6000V lightning proof; surge protection; voltage transient protection |
| Dimension | 332 mm × Φ190 mm |
| Power Source | 24 VDC, 2.5 A (± 25%) PoE+ (802.3at) |
| Power Consumption | Basic: 13 W Max.: 22 W (IR On) |
| Weight | 4.7kg |
