CP-VNP-3321R50-DAS
Home
Products
CP-VNP-3321R50-DAS

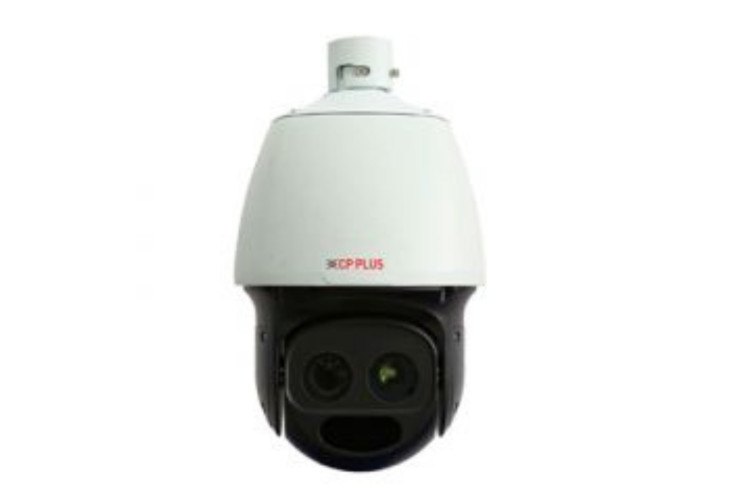

2MP 33x WDR IR Network Laser PTZ Camera - 500 Mtr.
Add To Cart
Category:
Speed Dome(PTZ)
Sub Category:
Network
SKU:
16434
Share:
Description
Additional Information
Ratings
1/2.8" 2MP Progressive scan CMOS Image Sensor (0.9071 centimeters)
Max. 2MP (1920x1080), Max 60fps
Powerful 33x Optical Zoom
WDR(120dB), 2D/3D-DNR, Day/Night (ICR), EIS, Digital Defog, AWB, ROI, BLC, HLC
Ultra 265, H.265, H.264, MJPEG Triple streams Encoding
Up to 1024 Presets, Preset patrol, route patrol, recorded patrol
Max 240°/s pan speed, 360° endless pan rotation
Built-in 1/1 alarm in/out, IP66
Laser Range of 500Mtr., Micro SD Card
Support Starlight Technology
Mobile Software: Android, iOS
CMS Software: IVMS
*Only for UAE
Image Sensor
1/2.8" 2MP Progressive scan CMOS Image Sensor (0.9071 centimeters)
Resolution
2MP
S/N Ratio
>52dB
Minimum Illumination
Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR
Frame Rate
Main Stream: 2MP (1920x1080), Max 60fps ; Sub Stream: 2MP (1920x1080), Max 60fps; Third Stream: D1 (720x576), Max 60fps
Focal Length
4.5mm ~ 148.5 mm
White Balance
Auto / Manual
Focus Control
Auto / Manual
Iris Control
Auto/Manual; F1.6 ~ F5.3
Angle of View
62.67° ~ 2.82°(H), 38.4° ~ 1.3°(V), 77.1° ~ 3.3°(O)
Electronic Shutter
Auto/Manual, shutter time: 1 ~ 1/100000 s
AGC Control
Auto / Manual
Back Light Compensation
BLC / HLC / WDR(120dB)
Optical Zoom
33x
Digital Zoom
16x
Pan Travel
360° endless, Pan Speed: 0.1°/s ~ 240°/s
Tilt Travel
–15° ~ 90° (auto reverse), Tilt Speed: 0.1° ~160°/sec
Presets
1024
Preset Speed
Pan: 300° /s; Tilt: 240° /s
Day/Night: IR Cut Filter
IR-cut filter with auto switch (ICR)
Video Compression
Ultra 265, H.265, H.264, MJPEG
Audio Streaming
Two way Talk Supported
Networking
1 RJ45 10M/100M Base-TX Ethernet
IVS
Object Moving, Object Left, Face detection, Audio detection, Motion detection, People counting, Line crossing detection, Intrusion detection, Auto tracking, Master-slave Linkage
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
Alarm
1Ch. In/ 1Ch. Out
IR Range
Laser Range of 500 Mtr., Built-in VF laser IR
Operating Temperature
-40°C ~ +70°C (-40°F ~ 158°F), Humidity = 95% RH(non-condensing)
Memory
Micro SD, up to 256GB
Weatherproof Standard
IP66
Dimension
Ø227 x 359.4 mm (Ø8.9” x 14.2”)
Power Source
24 V AC±25% (default power supply), 24V DC±25%, PoE (PSE Required)
Power Consumption
8 ~ 47W
Weight
5.6kg
